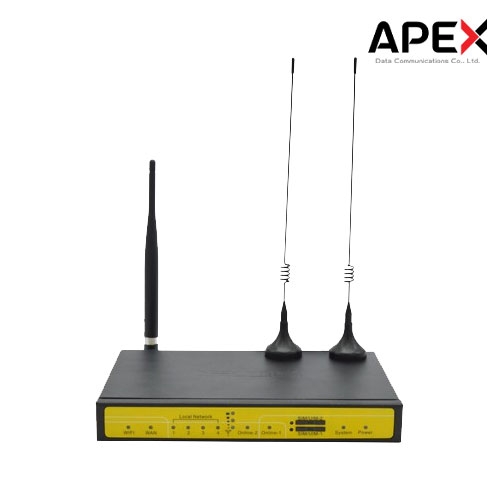

Four-Faith F3946 Dual-Module WIFI Router

เราเตอร์ 3G/4G แบบอุตสาหกรรมที่มาพร้อมโมดูลเซลลูลาร์คู่ (dual‑module) ซึ่งรองรับการใช้งานบนเครือข่าย LTE, WCDMA, TD‑SCDMA และ EVDO Rev A/B โดยโมดูลหลักและรองสามารถรับ-ส่งข้อมูลได้หลากหลายความถี่

แบรนด์สินค้า:

Four-Faith

สถานะสินค้า:

พร้อมจำหน่าย

ข้อมูลสินค้า

Four-Faith's F3946 is an IoT wireless communication router. It plays the role of transmitting long-distance wireless data through public networks in real IoT-applied solutions and other smart interactive scenarios.
The F3946 router adopts industrial-grade designs, including an industrial-grade 32-bit processor and wireless module, with the watchdog system, which makes the F3946 router suitable for industrial use and capable of keeping its stable operation even in harsh environments.
With standard IoT ports including RS232 and RS485, the F3946 dual sim wifi router has the capacity to connect multiple devices simultaneously for wireless data transmission.
The F3946 dual sim wifi router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Cellular Specification

Cellular Module	Industrial cellular module
Standard and Band	Main module: LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional) DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39) CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz(optional) 450MHz (optional) EDGE/GPRS/GSM 850/900/1800/1900MHz Standby module : LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional) DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39) CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz(optional) 450MHz (optional) EDGE/GPRS/GSM 850/900/1800/1900MHz
Bandwidth	LTE FDD: Download speed 100Mbps, Upload speed 50Mbps LTE TDD: Download speed 61Mbps, Upload speed 18Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
TX power	<23dBm
RX sensitivity	<-97dBm

WIFI Specification

Item	Content
Standard	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max)
Security	WEP, WPA, WPA2, etc WPS (optional)
TX power	20dBm(11n),24dBm(11g),26dBm(11b)
RX sensitivity	<-72dBm@54Mpbs>

Hardware System

Item	Content
CPU	Industrial 32bits CPU
FLASH	16MB(Extendable to 64MB)
DDR2	128MB

Interface type

Item	Content
WAN	1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN	4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps
Indicator	"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", "Signal Strength"
Antenna	Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings

Power supply

Item	Content
Standard Power	DC 12V/1.5A
Power range	DC 5~36V

Consumption

Working condition	Consumption
Standby	290～360mA@12VDC>
Communication	340～610mA@12VDC>
Schedule Shutdown	2.57~4.2mA@12DVC>

Physical Characteristics

Item	Content
Housing	Iron, providing IP30 protection
Dimensions	207x135x28 mm
Weight	810g

Environmental Limits

Item	Content
Operating Temperature	-35~+75ºC(-31~+167℉)
Storage Temperature	-40~+85ºC (-40~+185℉)
Operating Humidity	95% ( unfreezing)
