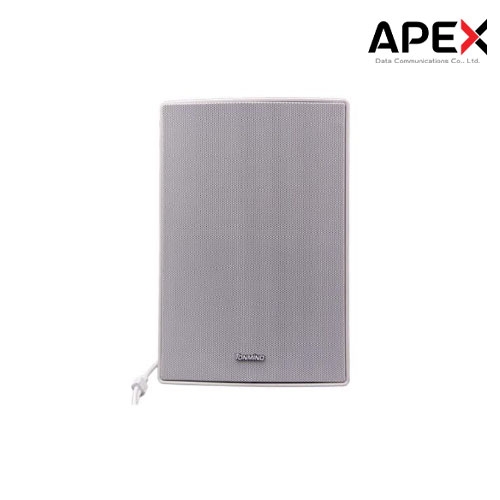

Tonmind SIP-S11M

Tonmind SIP-S11M

Tonmind SIP-S11M ลำโพงติดผนัง IP 30W พร้อมไมโครโฟน รองรับ SIP/ONVIF เชื่อมต่อ PoE/DC 12-24V กันน้ำ IP55 เหมาะสำหรับสื่อสารสองทางในพื้นที่ภายนอกและสำนักงาน

แบรนด์สินค้า:
Tonmind
สถานะสินค้า:
พร้อมจำหน่าย

The SIP-S11M IP Wall Speaker has a built-in MIC, which makes it flexible to make two-way intercom communication. The standard SIP protocal allows easy integration to other SIP devices, the standard ONVIF protocol enable easy integration with most brands IP camera VMS/NVR in the market. It can be installed horizontally or vertically, which makes it easy to mount on the exterior of building such as under eave. It's ideal for installation in school, offices, stores and hospitals. This model with 48K OPUS Audio Codec enables excellent sound quality.  It can be applied to play background music, annoucements, security or fire alarm linkage.



SIP Speaker Wall Mounted Feature

  • IP 55 waterproof design for installation on exterior of building.
  • PoE eliminates need for local power supply.
  • 48K OPUS Audio Codec enables excellent sound quality .
  • Two-way intercom communication.
  • Standard SIP protocol to compatible with other SIP devices.
  • Compatible with IP Camera VMS/NVR via ONVIF.
  • Support Pre-recorded messages.
  • Support HTTP API for alarm in transmit.
  • Suppurt RTP Multicast as alternation of SIP backend system.



Specification

Audio
Codec OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Built-in MIC Yes
Speaker
Max SPL 105dB
Frequency Response 80Hz ~ 20KHz
Frequency  Range 500-2KHZ      +-10dB
400-12KHZ    +-20dB
Harmonic Distortion 0.1@1kHz
Signal to Noise Ratio 91dB
Network
Security Password protection, IP address filtering, Digest authentication, User access log
Network Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface 10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).
Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier Built-in 30W Amplifier
General
Material ABS (IP55 water-proof)
Rate Power 30W
Power Supply PoE or DC 12V/24V
Interface  Alarm in, DC Power, PoE
Installation Wall Mounted
Dimensions 296*196*157mm
Weight 3KG
Languages English
Warranty 2 years
Package Includes IP Wall Mounted Speaker
Quick Start Guide
