Tonmind SIP-S61T

Tonmind SIP-S61T

Tonmind SIP-S61T ลำโพง IP เพดาน 30W รองรับ SIP, PoE และการควบคุมผ่านเว็บ เหมาะสำหรับประกาศเสียงในอาคารและพื้นที่สาธารณะ ให้เสียงดังชัดเจน ติดตั้งง่ายและใช้งานสะดวก.

แบรนด์สินค้า:
Tonmind
สถานะสินค้า:
พร้อมจำหน่าย

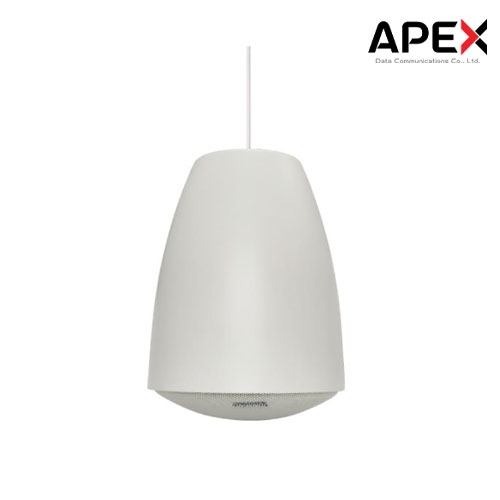

The Tonmind SIP-S61T is a 30W IP pendant speaker designed for clear, powerful audio in open-ceiling spaces. It supports SIP for easy integration with VoIP systems and ONVIF for compatibility with IP camera VMS. With built-in PoE, a 30W amplifier, and support for high-quality audio codecs like OPUS and G.722, it delivers excellent sound performance. Features like AEC, AGC, ANR, and scheduled message playback make it ideal for public address and notification systems.



IP Pendant Speaker Feature

  • Transmit  excellent sound for music and announcement.
  • 48K OPUS, AEC, AGC, ANR.
  • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
  • Compatible with IP Camera VMS via ONVIF.
  • Suppurt RTP Multicast as alternation of SIP backend system.
  • HTTP Control, Schedule,Pre-recorded messages event.
  • 30W Amplifier, PoE Power Supply.



Specification

Audio
Decoding OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Speaker
Max SPL 91dB
Frequency Response 70Hz ~ 20KHz
Frequency  Range 500-2KHZ      +-10dB
400-12KHZ    +-20dB
Harmonic Distortion 0.1@1kHz
Signal to Noise Ratio 91dB
Network
Security Password protection, IP address filtering, Digest authentication, User access log, Firewall
Network Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface 10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).
2 SIP Accounts, SIP Direct IP Call, RTP Multicast
Amplifier
Amplifier Description Built-in 30W Amplifier
General
Operating Temperature -30℃ — +60℃
Operating humility 5%-85%
Material ABS
Rate Power 30W
Power Supply PoE
Connector PoE
Installation Pendant
Dimensions D185*250mm
Weight 2.1 KG
Languages English
Warranty 2 years
Package Includes IP Pendant Speaker
User Manual
