Tonmind SIP-S01M

Tonmind SIP-S01M

Tonmind SIP-S01M ลำโพงเพดาน IP 15W พร้อมไมโครโฟน รองรับ SIP/ONVIF เชื่อมต่อ PoE/DC 12-24V เหมาะสำหรับสื่อสารสองทางในสำนักงานและพื้นที่สาธารณะ

แบรนด์สินค้า:
Tonmind
สถานะสินค้า:
พร้อมจำหน่าย

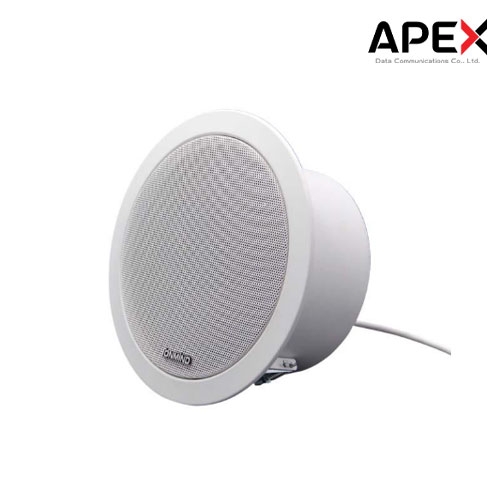

The IP Ceiling Speaker SIP-S01M is smooth design, which makes it nicely blending with its surroundings. It's easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals. With built-in MIC, it can support two-way intercom communication. It's compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.



SIP Ceiling Speaker Feature

  • Two-way intercom communication
  • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
  • Compatible with IP Camera VMS/NVRvia ONVIF
  • Support Pre-recorded messages
  • Support HTTP API for alarm in transmit
  • 48K OPUS Audio Codec, AEC, AGC, ANR
  • 15W amplifier, PoE Power Supply



Specification

Audio
Codec OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Built-in MIC Yes
Speaker
Max SPL 96dB
Frequency Response 100Hz ~ 18KHz
Frequency  Range 500-2KHZ      +-10dB
400-12KHZ    +-20dB
Harmonic Distortion 0.1@1kHz
Signal to Noise Ratio 91dB
Network
Security Password protection, IP address filtering, Digest authentication, User access log
Network Protocol SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface 10/100 Base-TX, RJ45
VoIP

Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.

Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.

Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).

Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier Built-in 15W Amplifier
General
Material Metal
Rate Power 15W
Power Supply PoE or DC 12V
Installation In Ceiling
Dimensions 200 x 90 mm
Weight 1 KG
Languages English
Warranty 2 years
Package Includes Network Ceiling Speaker
Quick Start Guide
