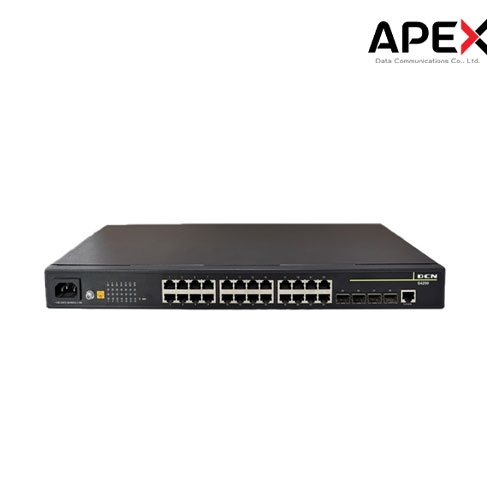

DCN S4200-28P-SI(R3)

DCN S4200-28P-SI(R3)

สวิตช์บริหารจัดการระดับ L2 ที่มาพร้อม 24 พอร์ต Gigabit RJ45 และ 4 พอร์ต SFP 1 Gb รองรับการใช้งานในโครงข่าย ISP, Campus หรือ SME

แบรนด์สินค้า:
DCN
สถานะสินค้า:
พร้อมจำหน่าย

Green Energy

S4200-SI series complies with IEEE 802.3az (Energy-Efficient Ethernet) standard, dramatically lower power consumption

With the Innovative port-LED Shut-off function, the user can automatically set the switch port-LED UP or DOWN at a specified period according to their needs to achieve functional, energy-saving correct results.

A full account of low noise requirements of the environment, S4200-SI uses Fanless Design and Smart fan strategies to real-time temperature monitoring system, and reduce the noise pollution.



Simple Operation and Maintenance

VCT, DDM (Digital Diagnostic Monitoring) and other features achieve rapid detection of the network failures; reduce operation and maintenance difficulty.



High Reliability

S4200-SI series support 4 Gigabit uplink ports, which could be designed to offer redundant uplinks with various ring protection applications, effectively raised the expansibility and performance of network.

G.8032 provides sub-50ms protection and recovery switching for Ethernet traffic in a carrier ring topology. S4200-SI series support G.8032 v2 and can be deployed in a variety of complex network topologies including single ring, tangent ring, intersecting rings, double rings and other home networking



Abundant Multicast Features

S4200-SI series also support MVR (Multicast VLAN Register), selectively allows traffic to cross between different VLANs for bandwidth and security reasons. With MVR Trunk function, which could associate multicast VLAN to trunk port, S4200-SI series combines the VLAN data into the same link, saving lots of resources for users.

S4200-SI series could prevent multicast traffic from flooding via IGMP Snooping, while multicast traffic is only forwarded to ports associated to multicast devices.



Product Specifications

Item

S4200-28P-SI(R3)

Ports

24 x 100/1000Base-T + 4 x 100/1000Base-X (SFP)

Auto-MIDX
Performance

Switching Capacity

56Gbps

Forwarding Rate

41.7Mpps

Flash

32M

RAM

256M

MAC ADDRESS

8K

Jumbo Frame

10K

ACL Table

1408

Queues per port

8

VLAN TABLE

4K


Physical Features

Dimension(W*H*D)

440mm*44mm*170mm

Power Input

100~240VAC, 50~60Hz

Power Consumption

20w

Cooling

Passive

Temperature

Working 0°C~50°C, Storage -40°C~70°C

Relative Humidity

5%~95%, non-condensing

EMC Safety

CE, RoHS


Main Features

Forwarding

Storage and Forwarding

VLAN

Port-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN

Normal QinQ, Selective QinQ, Flexible QinQ

VLAN Translation, N:1 VLAN Translation

DHCP

IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay

Option 82, Option 37/38

IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server

Reliability

Spanning Tree

802.1D STP, 802.1W RSTP, 802.1S MSTP

Root Guard, BPDU Guard, BPDU Forwarding

LACP

8 groups / 8 ports

L2 Ring Protection

MRPP

ERPS(G.8032)

Loopback Detection

Fast Link

Security

IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL

Time Range ACL

ACL rules can be configured to port, VLAN

Storm Control based on packets and bytes

Port Security, MAC Limit based on VLAN and Port

Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding

ND Snooping

IP Source Guard, Dynamic ARP Inspection

IEEE 802.1x

Authentication, Authorization, Accounting

Radius, TACACS+

Multicast

IGMP v1/v2/v3 snooping, IGMP Fast leave

MVR

MLD v1/v2 snooping

IPv4/IPv6 DCSCM

QoS

8 Queues Per Port

Bandwidth Control

Flow Redirect

Classification based on ACL, VLAN ID, COS, TOS, DSCP

Policing Based on Port and VLAN

Single Rate single barrel double color for Policing

Remark DSCP, COS/802.1p, Precedence, TOS

SP, WRR, SWRR, DWRR for Scheduling

Match the IP fragmentation of message

Maintenance and Operation Management

TFTP/FTP

CLI, Telnet, Console

Web/SSL (IPv4/IPv6)

SSH (IPv4/IPv6)

SNMPv1/v2c/v3

SNMP Trap

Public & Private MIB interface

RMON 1, 2, 3, 9

Ping

Syslog (IPv4/IPv6)

SNTP/NTP (IPv4/IPv6)

Multiple Configuration Files

Port Mirror, CPU Mirror, RSPAN

VCT, DDM

ULDP(like Cisco UDLD)

LLDP/LLDP MED

Green Energy

IEEE 802.3az (Energy Efficient Ethernet)

Fanless (10P, 10P-PL & 28P)

LED Shut-off
